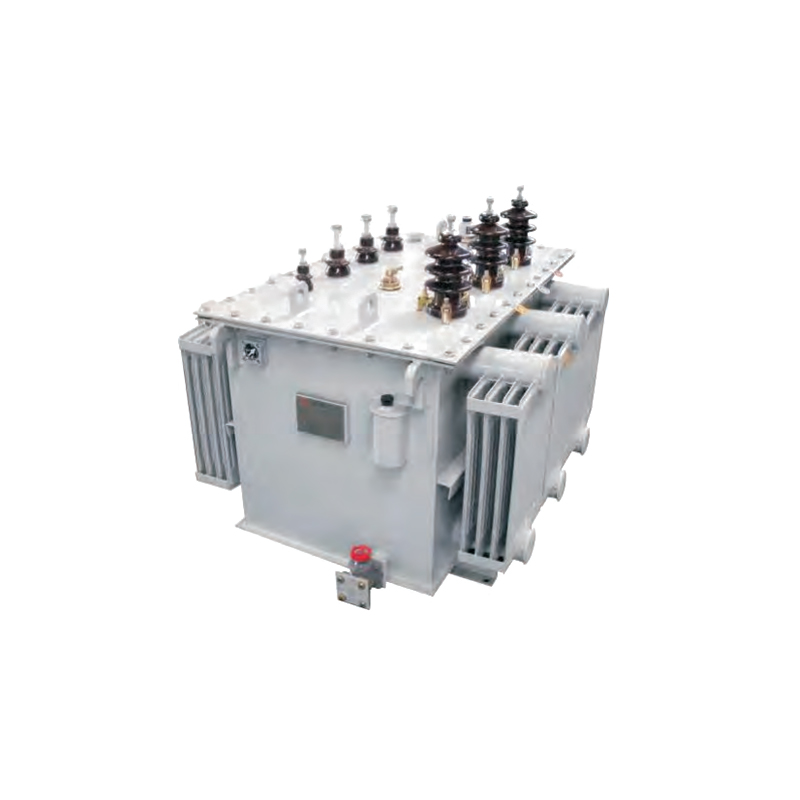

SH15-M Sealed Non-Crystalline Alloy Power Transformer

What is a Non-Crystalline Alloy Power Transformer, and how does it differ from traditional power transformers?

A Non-Crystalline Alloy Power Transformer, also known as an amorphous metal or metallic glass transformer, is a type of power transformer that utilizes non-crystalline or amorphous metal alloys as the core material instead of traditional crystalline materials like silicon steel. The core of a transformer is a crucial component that provides a low reluctance path for the magnetic flux, and the choice of core material can significantly impact the transformer's performance.
Here's how Non-Crystalline Alloy Power Transformers differ from traditional power transformers:
Material Composition:
Non-Crystalline Alloy Transformers: These transformers use amorphous metal alloys, typically composed of a combination of iron, nickel, and other elements. The lack of a crystalline structure in these alloys gives them unique magnetic properties.
Traditional Transformers: Traditional transformers often use laminated cores made of crystalline materials, such as silicon steel. The laminations are insulated from each other to reduce eddy current losses.
Magnetic Properties:
Non-Crystalline Alloy Transformers: Amorphous metals exhibit superior magnetic properties, such as lower core loss and higher permeability, compared to traditional crystalline materials. This results in reduced energy losses and improved efficiency.
Traditional Transformers: While silicon steel is a widely used and reliable material for transformer cores, it may have higher core losses due to eddy currents, especially at higher frequencies.
Energy Efficiency:
Non-Crystalline Alloy Transformers: The use of non-crystalline alloys in transformers contributes to higher energy efficiency, particularly in applications with varying loads. The lower core losses translate to reduced energy consumption and operational costs.
Traditional Transformers: Traditional transformers, while effective, may have higher losses, especially under partial load conditions.
Cost and Manufacturing:
Non-Crystalline Alloy Transformers: Amorphous metal alloys can be more expensive to manufacture than traditional crystalline materials. However, the potential energy savings over the transformer's operational life can offset the initial costs.
Traditional Transformers: Silicon steel is a well-established and cost-effective material, making traditional transformers more economical in terms of initial investment.
Environmental Impact:
Non-Crystalline Alloy Transformers: The higher energy efficiency of amorphous metal transformers can contribute to reduced greenhouse gas emissions and a smaller environmental footprint over their lifetime.
Traditional Transformers: While effective, traditional transformers may have slightly higher losses, leading to a comparatively larger environmental impact.
In summary, Non-Crystalline Alloy Power Transformers leverage amorphous metal alloys to achieve higher energy efficiency, reduced core losses, and improved overall performance compared to traditional transformers with crystalline cores. The choice between the two depends on factors such as cost considerations, energy efficiency requirements, and environmental considerations.
